Outdoor Unit Product Code: CN.15.290
Indoor Unit Product Code: 86.20.110

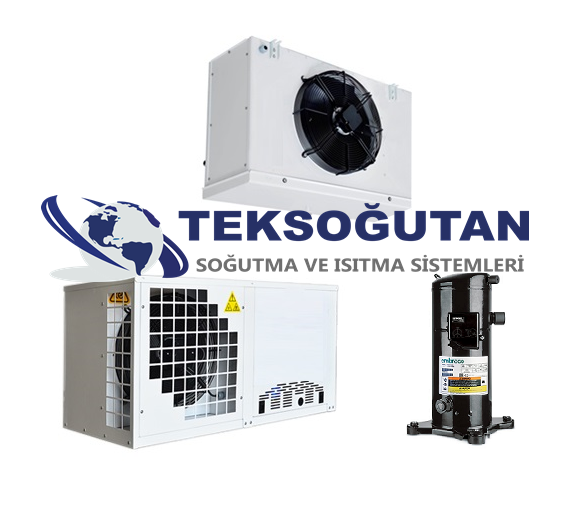

THE OUTDOOR UNIT
Production Place: Turkey
Ambient Temperature: Normal
Cassette Type: Closed Split Type
Working Regime: -25/45°C EN12900/10K-SH
Application Type: Frozen Storage
Room Volume - V (m³) (+40°C Cond.): 60
Room Volume - V (m³) (+45°C Cond.): 55
Room Volume - V (m³) (+50°C Cond.): 50
Refrigerant: R404A
Cooling Capacity (W) (+40°C Cond.): 5,280
Cooling Capacity (W) (+45°C Cond.): 4.871
Cooling Capacity (W) (+50°C Cond.): 4.461
Energy Efficiency (COP): 1.25
Noise Level: 47.14 DBA/10M
Liquid Line: Sanhua FSV-JA4GSHC-58 1/2 Service Valve R404A 1/4
Suction Line: Sanhua SBV(M)-JA7YHSY-1-SA Ball Valve 7/8"
Compressor Features
Compressor Brand: Embraco
Compressor Type: Scroll
Compressor Model: Embraco SE2020GS-O (6,00 Hp Three Phase - LBP) OEM Plt.
Compressor Crank Heater: Crank Heater 48cm / 70W / 220V (15-29)
Compressor Quantity and Power (pcs X Hp): 1 x 6,00
Compressor Electric Supply (V/Ph/Hz): 380 - 400 / 3 / 50 - 60
Compressor Discharge Line ( Ø inch): 1/2"
Compressor Suction Line ( Ø inch): 7/8"
Condenser and Fan Information
Condenser Brand: Karyer
Condenser Type: F&T
Condenser Model: FrigoCraft Condenser - 4-CHH-145/150
Condenser Capacity Watt Dt=15 °C: 15.315
Condenser Pitch Range (mm): 2.10
Condenser Surface Area (m²): 27.70
Air Flow (m³/h): 5.411
Fan Motor Brand: Weiguang
Fan Motor Speed (RPM): 4 Poles (1,400 rpm)
Fan Motor (Quantity X Diameter): 1x450
Fan Motor Drawn Power (kW): 1X0,398
Fan Motor Electric Supply (V/Ph/Hz): 220 - 230 / 1 / 50
Liquid Line
Liquid Tank: FrigoCraft 7lt 1/2" Vertical Liquid Tank with Thin U.T.V.
Filter Drayer: Danfoss 023Z4572 DML 084S Dryer Filter 1/2" Welded
Gas Sight Glass: Danfoss 014-0183 SGN 12S - 1/2" Welded
controls
Low Pressure Control: Danfoss 061F9032 ACB-2UC32W A.B.O. 0.3/1.8 bar
High Pressure Control: Danfoss 061F9077 ACB-2UC85W Y.B.O. 20.0/25.0 bar
Fan Control: Danfoss 061F8490 ACB-2UA392W F.K. 8.5/11.0 bar
Electrical Panel: 6 hp Embraco Scroll Panel
INDOOR UNIT
Production Place: Turkey
Device Type: Standard Series
Casing Type: Electrostatic Powder Coated
Evaporator Pitch Range (mm): 8
Cooling Cap. SC3: 7,257
Evaporator Surface Area (m2): 25,40
Evaporator Pipe Volume (dm3): 9.30
Input connection (inch): 7/8"
Output Connection (inch): 1 3/8"
Fan Information
Fan Motor Brand: Ziehl-Abegg
Fan Motor Speed (RPM): 4 Poles (1,400 rpm)
Air Flow (m³/h): 7.600
Blowing Distance (mt.): 11.00
Fan Motor (Quantity X Diameter): 3x350
Fan Motor Drawn Power (kW): 3X0.154
Fan Current (A): 3X0.83
Fan Motor Electric Supply (V/Ph/Hz): 220 - 230 / 1 / 50
Expansion Valve Information
Valve Brand: Danfoss
Valve Model: Danfoss 068Z3415 TES 2 R404A (External Equilibrium Source) MOP N
Orifice Model: Danfoss 068-2009 T2 / TE2 NO:06 Orifice
Defrost Heater Information
Defrost Heater-Battery R2 (kW): 6,00
Defrost Heater-Pan R2 (kW): 3,00
